4' x 4' Multi Action Drag Chain Harrow - Overall 90" Long - 1/2"
27 | customer reviews
Item No : 510402 Availability : 13$260.00 $260.97
Complete With Heavy Duty Universal Draw Bar, Pull Chains & Tow Ring. Single Depth Semi-Professional Harrow. Use Behind ATV, Lawn Tractor, Pickup, Tractor or Behind farm implements for one pass coverage. For More Info Please Click View Details Button...
You save time and fuel on your machine by using 8' long double depth harrows because you are getting two harrowing actions in one pass to finish the job. Using 4' long harrows, it will take double the time to finish the same job. Thank you. By seller on 2020-Dec-30
First dimension in size is width, like in 4'x8' harrows 4' is the width and 8' is the length similarly in 8'x4' harrows 8' is the width and 4' is the length. Please see details of the item to get more information. Thank you By seller on 2020-Dec-30
There are multiple wire ties to keep chain harrow section intact while shipping. You need only Wire Cutter to unwrap the chain harrow section and then engage big hooks to the drawbar and it is ready to go. For Chain Harrows having multiple sections width wise you need a 5 Lbs hammer to lock together S-Hooks on side of each harrow section. By seller on 2018-Jul-19

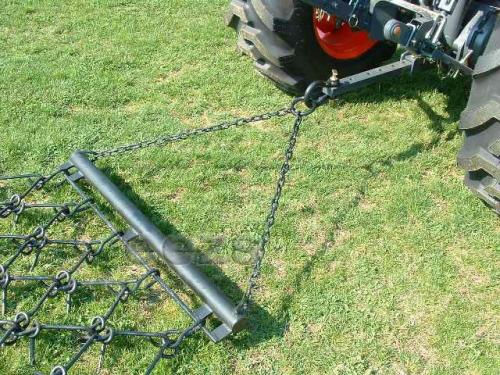

Harrow comes with drawbar, pull chains and tow ring to pull behind your tractor/atv. Tow ring goes on a 2" hitch ball or can be connected with a clevis. Look following items on this site :Item 21327 - Clevis 3/4"Item 10291 - 3 Point drawbar trailer hitch By Gary K. on 2017-Jul-30
Multi Action Chain Link Drag Harrow || Complete With Heavy Duty Universal Draw Bar, Chain & Ring || It is easy to use and handle || Perfect Results || No Lubrication or Adjustments required || Use Behind ATV, Lawn Tractor, Pickup, Tractor or Behind farm implements for one pass coverage ||
1045 Carbon Steel. Complete With Heavy Duty Universal Draw Bar, Pull Chains and Tow Ring ||
1/2"x 4" Long 60 Tines || 48"Wide x 54"Long Harrow Section || Overall Length 7.1/2 Ft. ||
Power Required To Pull 4HP. Net Weight 85 Lbs. ||
APPLICATION - The Chain harrow is ideal for the horse and cattle farmers that are spreading manure to help control parasites, for preparing seed beds, covering seed beds to enhance germination, harrowing in fertilizer on hay fields to assure a faster, more vigorous re-growth, incorporating herbicides, root raking, pasture renovation, Riding ring and paddock maintenance, land leveling, knocking down ant hills and gopher holes, landscaping and driveway maintenance.
EASY CHANGE OVER OF ACTIONS - It is easy to change over tilling actions from aggressive to less aggressive or vice versa with convenience of removing pull drawbar and putting together on opposite end of the harrow section. ||
